FUTURA CLASS II

Features

• Constant luminous flux even in ambient temperature of -25 °C
• Up to 45 % lower electricity consumption when compared to tubes
• In DALI version: possibility of constant luminous flux for whole lifetime (CLO)
• Available in ABS chemical resistant version
• Optional throughwiring (up to 6 wires inside the light fitting)
• Standard model - CRI > 80: 4000 K
• At request CRI > 80: 3000 K, 5000 K, 6500 K, CRI > 90: 3000 K, 4000 K
• The package includes stainless hooks and stainless brackets; if ordered without cables, packaging includes connector counterpart

Technical data

• System efficacy: 165 lm/W
• Degree of protection: IP66
• Minimum ambient temperature: ta = -25 °C
• Maximum ambient temperature: ta = 50 °C
• Minimum ambient temperature: ta = 0 °C version with emergency back-up source
• Maximum ambient temperature: ta = 25 °C version with emergency back-up source
• Life time: 50000 hours / L90/B10
• Unified Glare Ratio (UGR) from 21,1 to 23,9
• Impact strength: IK10
• Chromaticity tolerance (initial MacAdam): SDCM3
• Certification CE, HACCP

Attachment method

• Suitable for suspended mounting
• Suitable for ceiling mounting
• Suitable for wall mounting
• Suitable for surface mounting

Materials / finishes

• Body: grey PC (high mechanical resistance, UV stability, RAL 7035)
• Diffuser: translucent PC (high mechanical resistance, UV stability)
• Reflector: steel sheet, white (RAL 9003)
• Clips: polyamide + 15 % fibreglass, stainless steel + polyamide
• Sealing: polyurethane (PUR), foam-filled base groove

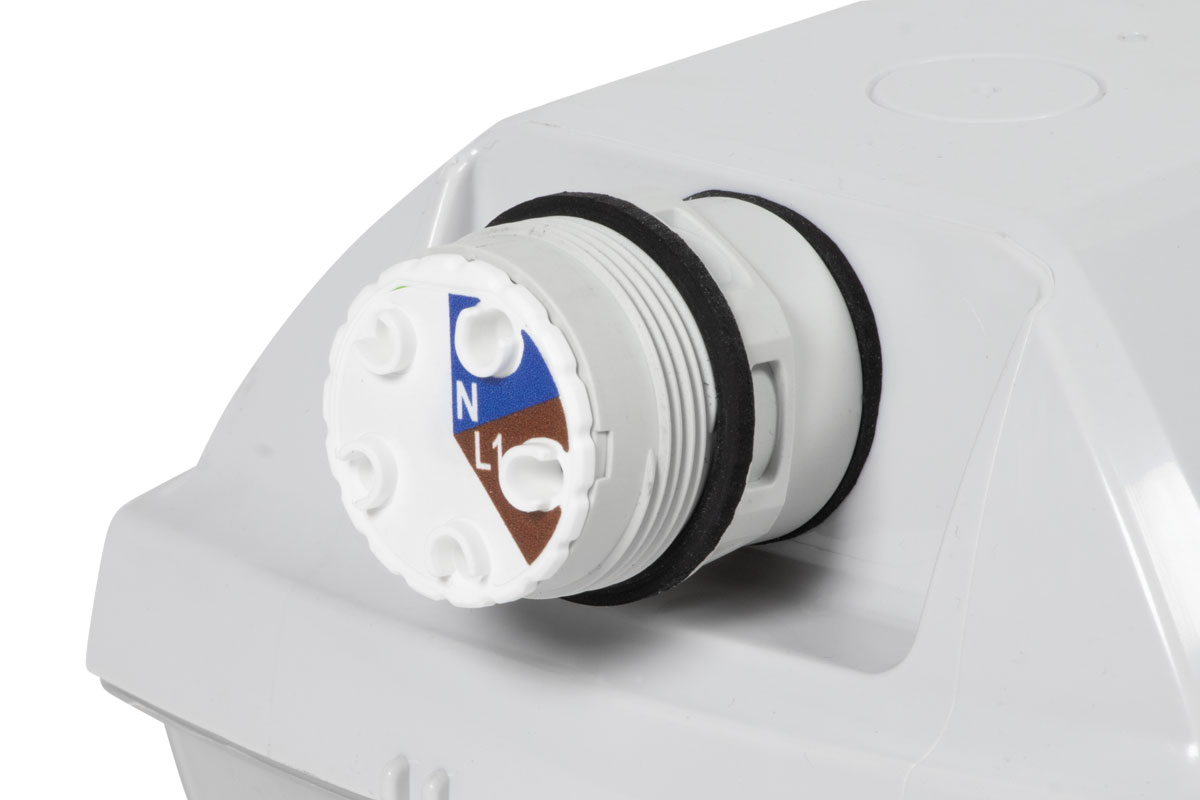

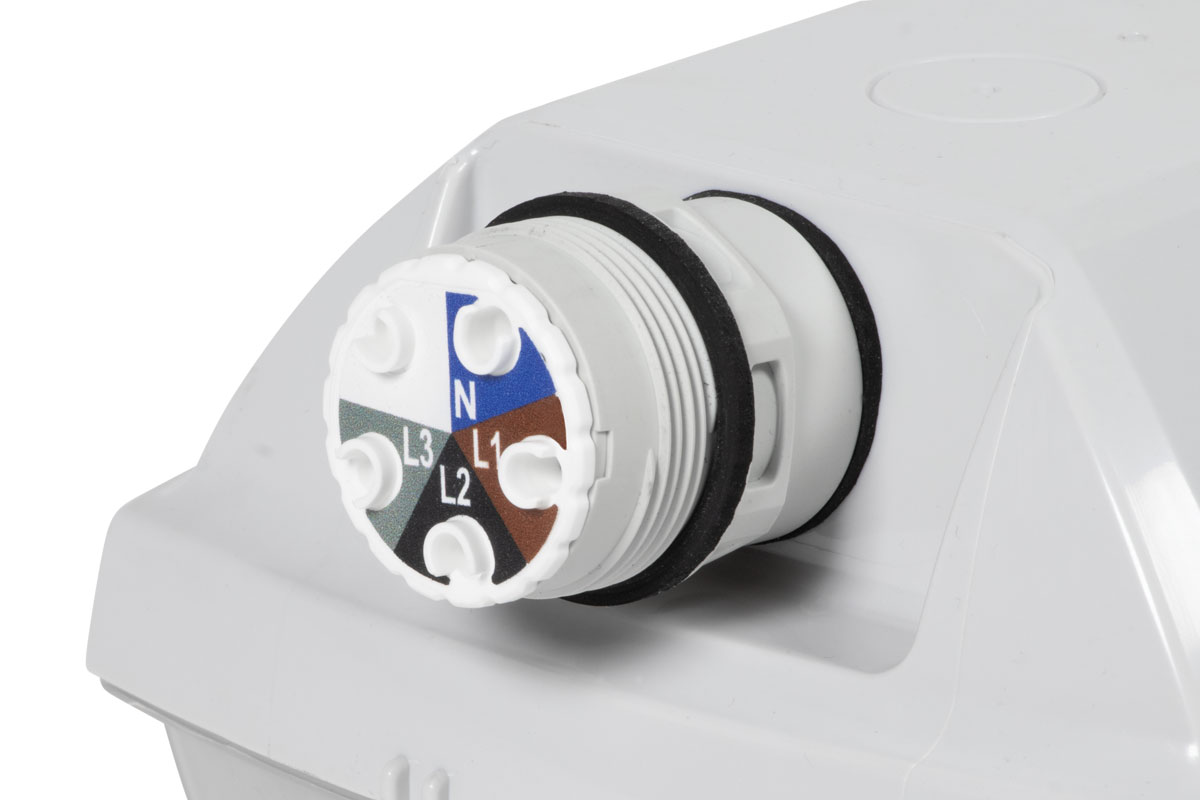

• Connection: screwless two-pole terminal block, screwless two-pole terminal block, 2-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless four-pole terminal block, 4-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless four-pole terminal block, screwless six-pole terminal block, 6-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless six-pole terminal block
• Cable glands: 2, 4 or 6-pole connectors, conductor cross-sectional area of 1.5 or 2.5 mm2

Electric equipment

• It can be delivered in emergency version
• It can be delivered in dimmable version

Download

Data sheet

CE

HACCP

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

• Plugin
• Library

• Plugin
• Library

Accessories to FUTURA CLASS II

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Manual

Luminosity curve

The catalogue sheet of each light fitting or the electronic catalogue in our website offer the luminosity curves. The luminosity curve shows graphically how the light fitting radiates light into the space. In other words, in what direction it emits light. The light source is situated in the centre of the system - in the polar area in the graph. When the light fitting is rotationally symmetric around its vertical axis (circle, square), we construct only one intensity distribution curve in one vertical plane. Red in our case. When the light fitting is not symmetric, we add a blue curve to the graph. The blue curve shows how the light fitting shines after rotation by 90° as against the first position. When measuring the light fitting in the axis of the source, we measure the C90-C270 plane; when measuring the light fitting vertically to the axis, we measure the C0-C180 plane. See the picture below.

• The luminosity in the given direction is measured by the goniophotometer.
• TREVOS disposes of that device.
• We are able to measure all light fittings by ourselves and to record the luminous output.
• So we can be sure that the light fitting shines as it should.

Luminosity curve example

Plastic industrial LED light fitting, with diffuser made of translucent polycarbonate with Class II insulation.

It is suitable for industrial, warehouse and agricultural buildings, sports premises, transport terminals, railway vehicle repair shops, platforms, traction substations, depots, parking lots and garages, workshops and laboratories without explosion hazard.

The light fitting resists dust, humidity and spouting water. The body and the diffuser made of PC material have high mechanical resistance against impact and deformation.

Easy, fast and maximally efficient mounting is achieved when using the cables with connectors delivered by us.

It is necessary to consider exhalation in the air which can reduce the usability of the plastic and aluminium at installations in an aggressive environment.
