INNOVA TRS

Features

• External terminal strip makes it easy to connect the supply cable – PLUG and PLAY system
• Partial illumination of the space over the fitting
• Easy cleaning and maintenance without need of replacing the light sources
• Optional throughwiring (up to 5 wires inside the light fitting)
• Fully automatic 100% control of functionality and tightness (leak test) during production
• Optional delivery of supply cables with connectors in specific required length
• Eliminated risk of mechanical and electrostatic damage to LED chips
• Variable suspension pitch; optional installation of light fitting even on an existing structure on which the original light fittings were suspended
• Standard model - CRI > 80: 4000 K
• Package contains stainless hooks and stainless brackets

Technical data

• System efficacy: 153 lm/W
• Degree of protection: IP66/IP69
• Minimum ambient temperature: ta = -25 °C
• Maximum ambient temperature: ta = 50 °C
• Life time: 50000 hours / L90/B10
• Unified Glare Ratio (UGR) from 18,6 to 21,7
• Impact strength: IK10
• Chromaticity tolerance (initial MacAdam): SDCM3
• Certification CE, ENEC, CB, ESČ, HACCP

Attachment method

• Suitable for suspended mounting
• Suitable for ceiling mounting
• Suitable for wall mounting
• Suitable for surface mounting

Materials / finishes

• Body: clear PC (high mechanical resistance, UV stability)
• Diffuser: clear PC (high mechanical resistance, UV stability)
• Reflector: steel sheet, white (RAL 9003), modified for indirect lighting

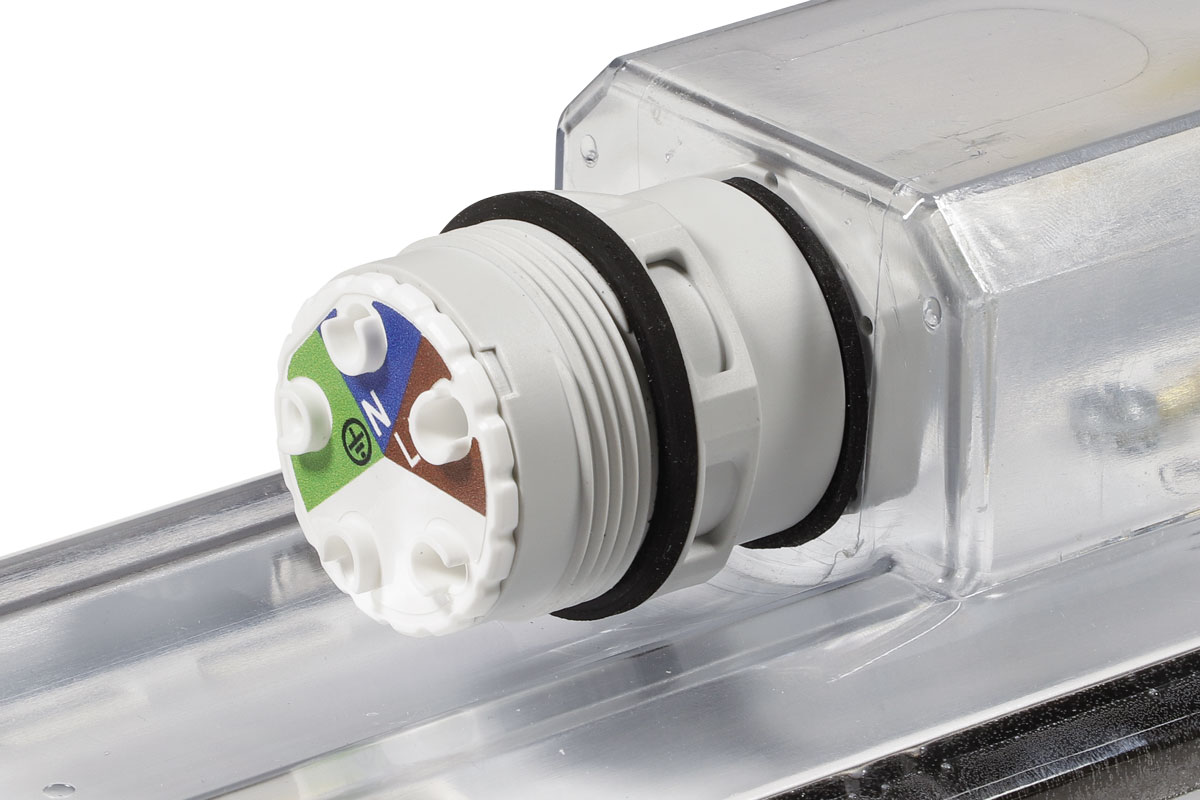

• Connection: external, 3-pole, 1.5 mm2 conductor cross-section (2.5 mm2 available on demand), external, 5-pole, 1.5 mm2 conductor cross-section (2.5 mm2 available on demand)
• Cable glands: External terminal block, 3 or 5 poles, 1.5 or 2.5 mm2 wire cross-section

Electric equipment

• It can be delivered in dimmable version

Download

Data sheet

CE

ENEC

CB

ESČ

HACCP

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

• Plugin
• Library

• Plugin
• Library

Accessories to INNOVA TRS

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Manual

Luminosity curve

The catalogue sheet of each light fitting or the electronic catalogue in our website offer the luminosity curves. The luminosity curve shows graphically how the light fitting radiates light into the space. In other words, in what direction it emits light. The light source is situated in the centre of the system - in the polar area in the graph. When the light fitting is rotationally symmetric around its vertical axis (circle, square), we construct only one intensity distribution curve in one vertical plane. Red in our case. When the light fitting is not symmetric, we add a blue curve to the graph. The blue curve shows how the light fitting shines after rotation by 90° as against the first position. When measuring the light fitting in the axis of the source, we measure the C90-C270 plane; when measuring the light fitting vertically to the axis, we measure the C0-C180 plane. See the picture below.

• The luminosity in the given direction is measured by the goniophotometer.
• TREVOS disposes of that device.
• We are able to measure all light fittings by ourselves and to record the luminous output.
• So we can be sure that the light fitting shines as it should.

Luminosity curve example

An enclosed, non-dismantable and fully transparent luminaire featuring a user non-replaceable light source in accordance with ČSN EN 60598-1(4). The fixture is a perfect choice for inside as well as outside spaces (roof and unroofed) with luminaire installation height ranging from 2.5 m to 5 m such as: production plants, (multistorey) car parks and garages, workshops, corridors, cellars, pedestrian underpasses and underground spaces with low ceilings. The structural design of the light fitting (IP69) allows even placement in food-processing industry - HACCP.

The light fitting resists dust, humidity and washing with spouting water up to 80 °C. The body and the diffuser made of PC material have high mechanical resistance against impact and deformation.

An external terminal strip makes it easy and quick to connect the supply cable with no need to open the fitting (PLUG and PLAY system).

Emissions in the environment of use may reduce the usability of the plastics.
