NANOTTICA CLASS II

Class II insulation, ceiling height from 3.5 to 8 m, impact resistant.

Product variants and technical data Clicking the 5-digit code displays other product information.
Code Type Ta Max.:
[°C]
Luminous flux of LED modules
[lm]
Luminous flux of light fitting:
[lm]
Power consumption:
[W]
System efficacy:
[lm/W]
Net weight:
[kg]
A
[mm]
D
[mm]
101813 NANOTTICA 1.2ft CLASS II PC 1300/840 50 1310 1230 8,2 150 0,9 610 110 - 370
101814 NANOTTICA 1.2ft CLASS II PC 1600/840 50 1560 1470 9,8 150 0,9 610 110 - 370
101815 NANOTTICA 1.2ft CLASS II PC 2200/840 45 2140 2010 13,2 152 0,9 610 110 - 370
101816 NANOTTICA 1.4ft CLASS II PC 2600/840 50 2600 2440 16,1 152 1,7 1170 700 - 960
101817 NANOTTICA 1.4ft CLASS II PC 3200/840 50 3100 2910 19,1 152 1,7 1170 700 - 960
101818 NANOTTICA 1.4ft CLASS II PC 4400/840 45 4300 4040 26 155 1,7 1170 700 - 960
101819 NANOTTICA 1.4ft CLASS II PC 6400/840 45 6120 5750 36,1 159 1,7 1170 700 - 960
101820 NANOTTICA 1.5ft CLASS II PC 3250/840 50 3240 3050 19,5 156 2 1450 970 - 1230
101821 NANOTTICA 1.5ft CLASS II PC 4000/840 50 3850 3620 23,3 155 2 1450 970 - 1230
101822 NANOTTICA 1.5ft CLASS II PC 5500/840 45 5340 5020 31,9 157 2 1450 970 - 1230
101823 NANOTTICA 1.5ft CLASS II PC 8000/840 45 7780 7310 44,3 165 2 1450 970 - 1230

Features

  • Patented optics ensures absolute control over light beam distribution
  • Optional throughwiring (up to 6 wires inside the light fitting)
  • Optimum luminaire installation height from 3.5 to 8 m
  • Variable suspension pitch; optional installation of light fitting even on an existing structure on which the original light fittings were suspended
  • Standard model - CRI > 80: 4000 K
  • At request CRI > 80: 3000 K, 5000 K, 6500 K, CRI > 90: 3000 K, 4000 K, 5000 K, 6500 K
  • Package contains stainless hooks and stainless brackets

Technical data

  • System efficacy: 165 lm/W
  • Degree of protection: IP66/IP69
  • Minimum ambient temperature: ta = -25 °C
  • Maximum ambient temperature: ta = 50 °C
  • Minimum ambient temperature: ta = 0 °C version with emergency back-up source
  • Maximum ambient temperature: ta = 25 °C version with emergency back-up source
  • Life time: 50000 hours / L90/B10
  • Unified Glare Ratio (UGR) from 19,1 to 22,3
  • Impact strength: IK10
  • Chromaticity tolerance (initial MacAdam): SDCM3
  • Certification CE, HACCP

Attachment method

  • Suitable for suspended mounting
  • Suitable for ceiling mounting
  • Suitable for wall mounting
  • Suitable for surface mounting

Materials / finishes

  • Body: grey PC (high mechanical resistance, UV stability, RAL 7035)
  • Diffuser: clear PC with nano-optics (high mechanical resistance, UV stability)
  • Reflector: steel sheet, white (RAL 9003)
  • Clips: polyamide + 15 % fibreglass, stainless steel + polyamide
  • Sealing: polyurethane (PUR), foam-filled base groove
  • Connection: screwless two-pole terminal block, screwless two-pole terminal block, 2-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless four-pole terminal block, 4-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless four-pole terminal block, screwless six-pole terminal block, 6-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless six-pole terminal block

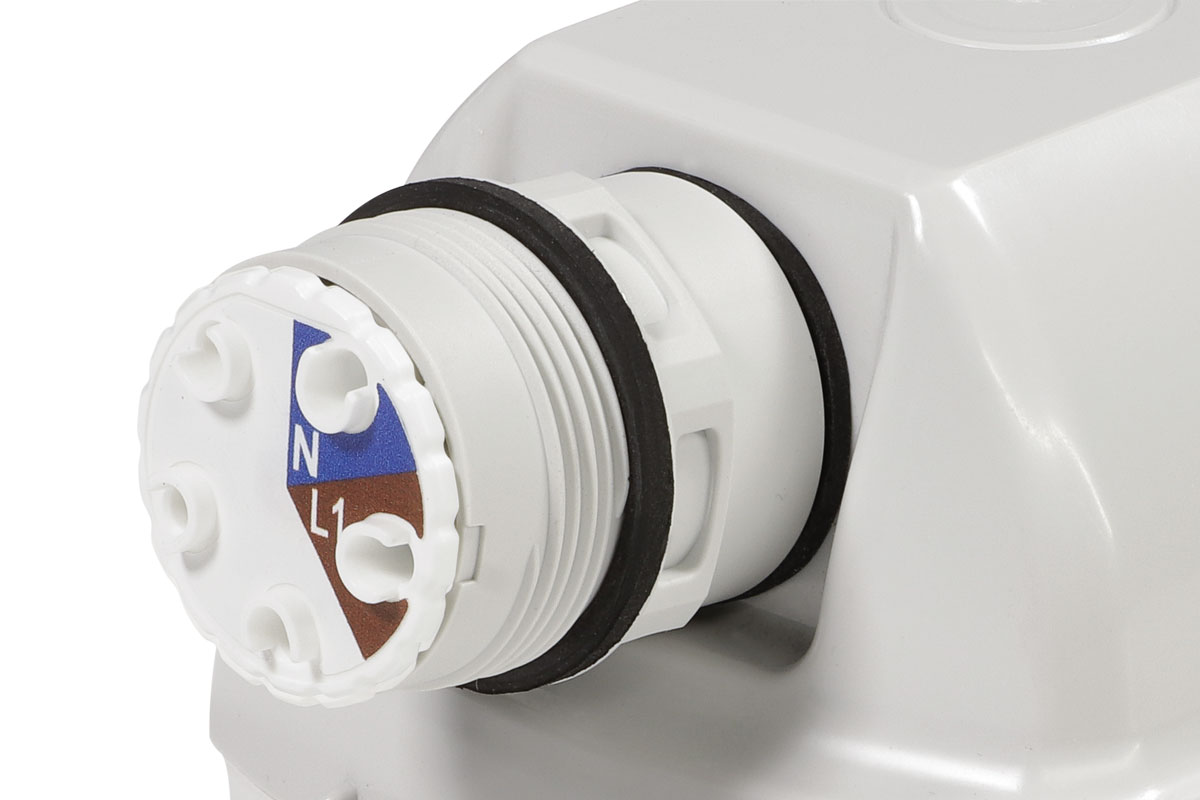

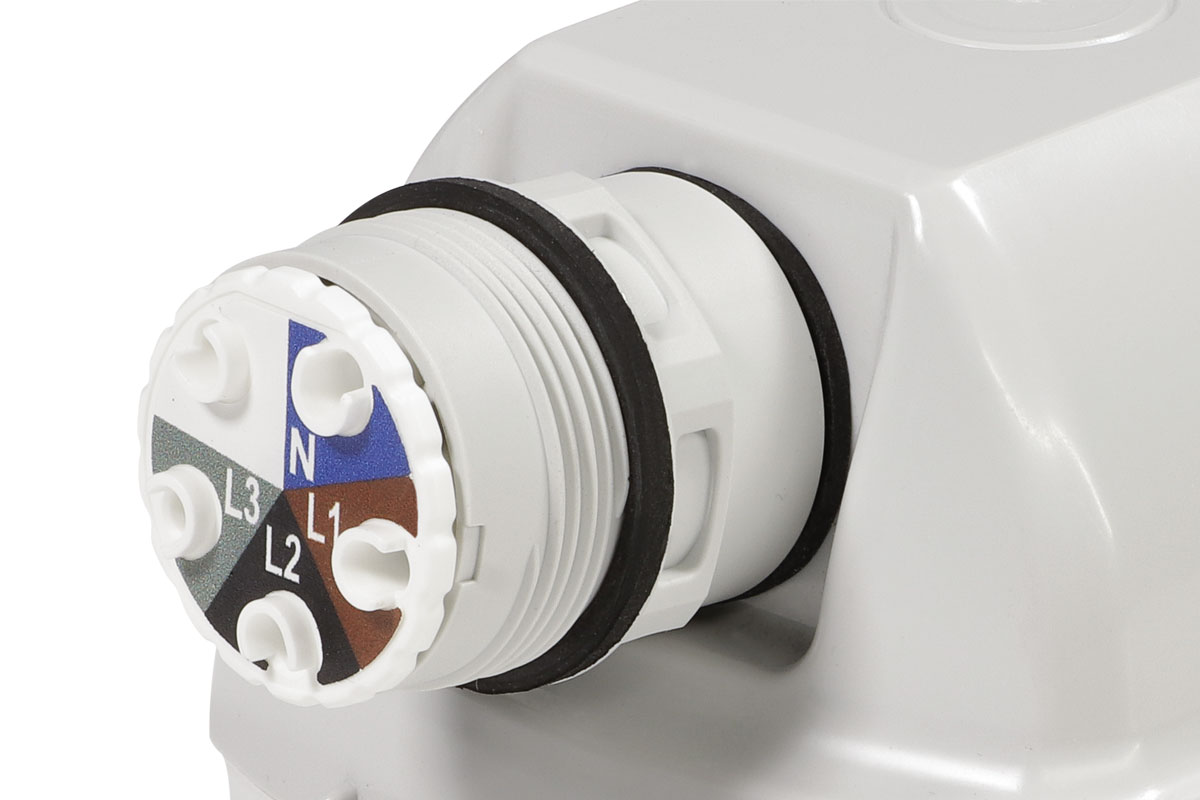

  • Cable glands: 2, 4 or 6-pole connectors, conductor cross-sectional area of 1.5 or 2.5 mm2

Electric equipment

  • It can be delivered in emergency version
  • It can be delivered in dimmable version

Download

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

Accessories to NANOTTICA CLASS II

Drawings and graphs of luminosity

Drawing

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.



The fixture boasts a low unified glare rating with UGR values its patented nanooptics. This ensures eye comfort, high visual performance and workplace safety, which indirectly translates into higher productivity.



save more

The fitting is highly recommended for illumination of premises where workers’ visual precision is of paramount importance. These include workshops where fine assembly work is performed as well as craft workshops and visual inspection areas.

Its standard beam angle makes it a perfect choice for premises with an optimum luminaire installation height of 3.5 to 8 m. The fixture is intended for indoor spaces, industrial and agricultural buildings, warehouses, rail vehicle maintenance facilities, platforms, substations, depots, car parks, garages, workshops and laboratories with no explosion hazard. IP69-rated and HACCP-compliant, the fitting’s design also makes it a great choice for the food industry.

Made of clear polycarbonate, the base and the diffuser boast high impact and deformation resistance. Emissions in the environment of use may reduce the usability of the plastics.

Show product line
