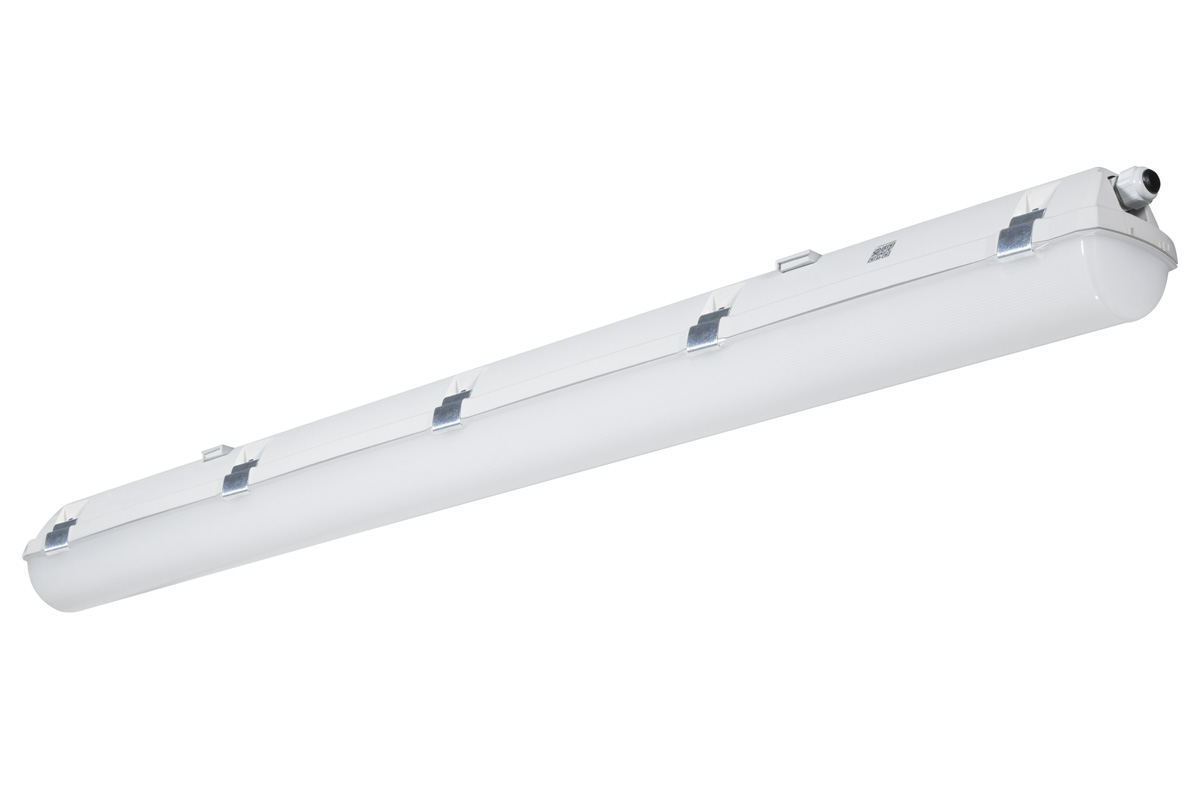

PRIMA LED MAX

Features

• Standard model - CRI > 80: 4000 K
• Possibility of using in even higher ambient temperatures under the condition of a shortened service life of the light fitting – parameters solved within a particular project
• Package contains stainless hooks and stainless brackets

Technical data

• System efficacy: 149 lm/W
• Degree of protection: IP66
• Minimum ambient temperature: ta = -40 °C
• Maximum ambient temperature: ta = 65 °C
• Life time: 50000 hours / L80/B10
• Unified Glare Ratio (UGR) from 19,8 to 20,9
• Impact strength: IK10
• Chromaticity tolerance (initial MacAdam): SDCM3
• Certification CE, HACCP

Attachment method

• Suitable for suspended mounting
• Suitable for ceiling mounting
• Suitable for wall mounting
• Suitable for surface mounting

Materials / finishes

• Body: grey PC (high mechanical resistance, UV stability, RAL 7035)
• Diffuser: translucent PC (high mechanical resistance, UV stability)
• Reflector: steel sheet, white (RAL 9003)
• Clips: stainless steel + polyamide
• Sealing: polyurethane (PUR), foam-filled base groove
• Connection: screwless three-pole terminal block, screwless three-pole terminal block, 3-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless five-pole terminal block, 5-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless five-pole terminal block, screwless seven-pole terminal block, 7-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand)
• Cable glands: Cable glands: PG 13.5 thread

Electric equipment

• It can be delivered in dimmable version

Download

Data sheet

CE

HACCP

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

• Plugin
• Library

• Plugin
• Library

Accessories to PRIMA LED MAX

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Manual

Luminosity curve

The catalogue sheet of each light fitting or the electronic catalogue in our website offer the luminosity curves. The luminosity curve shows graphically how the light fitting radiates light into the space. In other words, in what direction it emits light. The light source is situated in the centre of the system - in the polar area in the graph. When the light fitting is rotationally symmetric around its vertical axis (circle, square), we construct only one intensity distribution curve in one vertical plane. Red in our case. When the light fitting is not symmetric, we add a blue curve to the graph. The blue curve shows how the light fitting shines after rotation by 90° as against the first position. When measuring the light fitting in the axis of the source, we measure the C90-C270 plane; when measuring the light fitting vertically to the axis, we measure the C0-C180 plane. See the picture below.

• The luminosity in the given direction is measured by the goniophotometer.
• TREVOS disposes of that device.
• We are able to measure all light fittings by ourselves and to record the luminous output.
• So we can be sure that the light fitting shines as it should.

Luminosity curve example

The light fitting is suitable for indoor and outdoor with roof with extreme ambient temperatures from  (-40 °C to +65 °C). The fixture is designed especially for refrigeration, cold stores, bakeries, heating plants, metallurgical lines, glass factories and other premises without the danger of explosion of gases, dusts and flammable vapors.

The light fitting is resistant to dust, moisture and spouting water. The body and the diffuser made of polycarbonate (PC) have the increased resistance against deformation and impact.

(It is necessary to consider exhalation in the air which can reduce the usability of the plastic at installations in an aggressive environment).
